Encapsulation of the raylib Model. More...

#include <RlModel.hpp>

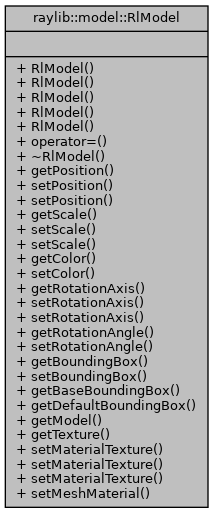

Collaboration diagram for raylib::model::RlModel:

Public Member Functions
	RlModel (const std::string &fileName)
	Construct a new RlModel object from a file. More...

	RlModel (const std::string &fileName, const std::string &textureName)
	Construct a new RlModel object from a file with a custom texture. More...

	RlModel (const std::shared_ptr< RlMesh > &mesh)
	Construct a new RlModel object from a mesh. More...

	RlModel (const RlMesh &mesh)
	Construct a new RlModel object from a mesh. More...

	RlModel (const RlModel &model)
	Copy constructor (create a copy of the raylib Model) More...

RlModel &	operator= (const RlModel &model)
	Assignment operator (Create a copy of the raylib Model) More...

	~RlModel ()
	Destroy the RlModel object. More...

const Vector3f &	getPosition () const
	Get the model position. More...

void	setPosition (const Vector3f &position)
	Set the model position. More...

void	setPosition (const float &x, const float &y, const float &z)
	Set the model position. More...

const Vector3f &	getScale () const
	Get the model scale. More...

void	setScale (const Vector3f &scale)
	Set the model scale. More...

void	setScale (const float &x, const float &y, const float &z)
	Set the model scale. More...

const RlColor &	getColor () const
	Get the model color. More...

void	setColor (const RlColor &color)
	Set the model color. More...

const Vector3f &	getRotationAxis () const
	Get the model rotation axis. More...

void	setRotationAxis (const Vector3f &rotationAxis)
	Set the model rotation axis. More...

void	setRotationAxis (const float &x, const float &y, const float &z)
	Set the model rotation axis. More...

const float &	getRotationAngle () const
	Get the model rotation angle. More...

void	setRotationAngle (float rotationAngle)
	Set the model rotation angle. More...

const BoundingBox &	getBoundingBox () const
	Get the model bounding box. More...

void	setBoundingBox (const BoundingBox &boundingBox)
	Set the model bounding box (will change the base bounding box) More...

const BoundingBox &	getBaseBoundingBox () const
	Get the model bounding box at the start. More...

BoundingBox	getDefaultBoundingBox () const
	Get the model bouding box (will call GetModelBoudingBox) More...

const Model &	getModel () const
	Get the raylib model. More...

const std::shared_ptr< texture::RlTexture > &	getTexture () const
	Get the texture linked to the model (can be null) More...

void	setMaterialTexture (const std::shared_ptr< texture::RlTexture > &texture)
	Set the material texture of the model (Default index 0 and type MATERIAL_MAP_DIFFUSE) More...

void	setMaterialTexture (const std::shared_ptr< texture::RlTexture > &texture, const int &materialIndex)
	Set the material texture of the model (Default type to MATERIAL_MAP_DIFFUSE) More...

void	setMaterialTexture (const std::shared_ptr< texture::RlTexture > &texture, const int &materialIndex, const MaterialMapIndex &type)
	Set the material texture of the model. More...

void	setMeshMaterial (const int &meshId, const int &materialId)
	Set material for a mesh. More...

Detailed Description

Encapsulation of the raylib Model.

Constructor & Destructor Documentation

◆ RlModel() [1/5]

raylib::model::RlModel::RlModel ( const std::string & fileName )

explicit

Construct a new RlModel object from a file.

Parameters

fileName the file name

◆ RlModel() [2/5]

raylib::model::RlModel::RlModel	(	const std::string &	fileName,
		const std::string &	textureName
	)

explicit

Construct a new RlModel object from a file with a custom texture.

Parameters

fileName	the file name
textureName	the texture name

Warning: Don't use this, link the texture manually through a resource manager for better performances

Here is the call graph for this function:

◆ RlModel() [3/5]

raylib::model::RlModel::RlModel ( const std::shared_ptr< RlMesh > & mesh )

explicit

Construct a new RlModel object from a mesh.

Parameters

mesh the mesh

◆ RlModel() [4/5]

raylib::model::RlModel::RlModel ( const RlMesh & mesh )

explicit

Construct a new RlModel object from a mesh.

Parameters

mesh the mesh

Here is the call graph for this function:

◆ RlModel() [5/5]

raylib::model::RlModel::RlModel ( const RlModel & model )

Copy constructor (create a copy of the raylib Model)

Parameters

model the model

◆ ~RlModel()

raylib::model::RlModel::~RlModel ( )

Destroy the RlModel object.

Member Function Documentation

◆ getBaseBoundingBox()

const BoundingBox & raylib::model::RlModel::getBaseBoundingBox ( ) const

Get the model bounding box at the start.

Returns: the model bounding box at the start

◆ getBoundingBox()

const BoundingBox & raylib::model::RlModel::getBoundingBox ( ) const

Get the model bounding box.

Returns: the model bounding box

◆ getColor()

const RlColor & raylib::model::RlModel::getColor ( ) const

Get the model color.

Returns: the model color

Here is the caller graph for this function:

◆ getDefaultBoundingBox()

BoundingBox raylib::model::RlModel::getDefaultBoundingBox ( ) const

Get the model bouding box (will call GetModelBoudingBox)

Returns: the model bounding box

◆ getModel()

const Model & raylib::model::RlModel::getModel ( ) const

Get the raylib model.

Returns: the raylib model

Here is the caller graph for this function:

◆ getPosition()

const Vector3f & raylib::model::RlModel::getPosition ( ) const

Get the model position.

Returns: the model position

Here is the caller graph for this function:

◆ getRotationAngle()

const float & raylib::model::RlModel::getRotationAngle ( ) const

Get the model rotation angle.

Returns: the model rotation angle

Here is the caller graph for this function:

◆ getRotationAxis()

const Vector3f & raylib::model::RlModel::getRotationAxis ( ) const

Get the model rotation axis.

Returns: the model rotation axis

Here is the caller graph for this function:

◆ getScale()

const Vector3f & raylib::model::RlModel::getScale ( ) const

Get the model scale.

Returns: the model scale

Here is the caller graph for this function:

◆ getTexture()

const std::shared_ptr< raylib::texture::RlTexture > & raylib::model::RlModel::getTexture ( ) const

Get the texture linked to the model (can be null)

Returns: the texture

◆ operator=()

raylib::model::RlModel & raylib::model::RlModel::operator= ( const RlModel & model )

Assignment operator (Create a copy of the raylib Model)

Parameters

model the model

Returns: the RlModel

◆ setBoundingBox()

void raylib::model::RlModel::setBoundingBox ( const BoundingBox & boundingBox )

Set the model bounding box (will change the base bounding box)

Parameters

boundingBox the bounding box

◆ setColor()

void raylib::model::RlModel::setColor ( const RlColor & color )

Set the model color.

Parameters

color the color

◆ setMaterialTexture() [1/3]

void raylib::model::RlModel::setMaterialTexture ( const std::shared_ptr< texture::RlTexture > & texture )

Set the material texture of the model (Default index 0 and type MATERIAL_MAP_DIFFUSE)

Parameters

texture the texture

Here is the caller graph for this function:

◆ setMaterialTexture() [2/3]

void raylib::model::RlModel::setMaterialTexture	(	const std::shared_ptr< texture::RlTexture > &	texture,
		const int &	materialIndex
	)

Set the material texture of the model (Default type to MATERIAL_MAP_DIFFUSE)

Parameters

texture	the texture
materialIndex	the material index to set the texture

◆ setMaterialTexture() [3/3]

void raylib::model::RlModel::setMaterialTexture	(	const std::shared_ptr< texture::RlTexture > &	texture,
		const int &	materialIndex,
		const MaterialMapIndex &	type
	)

Set the material texture of the model.

Parameters

texture	the texture
materialIndex	the material index to set the texture
type	the type of the texture (MATERIAL_MAP_DIFFUSE, MATERIAL_MAP_SPECULAR ...)

◆ setMeshMaterial()

void raylib::model::RlModel::setMeshMaterial	(	const int &	meshId,
		const int &	materialId
	)

Set material for a mesh.

Parameters

meshId	the mesh id
materialId	the material id

◆ setPosition() [1/2]

void raylib::model::RlModel::setPosition	(	const float &	x,
		const float &	y,
		const float &	z
	)

Set the model position.

Parameters

x	the x position
y	the y position
z	the z position

◆ setPosition() [2/2]

void raylib::model::RlModel::setPosition ( const Vector3f & position )

Set the model position.

Parameters

position the position

◆ setRotationAngle()

void raylib::model::RlModel::setRotationAngle ( float rotationAngle )

Set the model rotation angle.

Parameters

rotationAngle the rotation angle

◆ setRotationAxis() [1/2]

void raylib::model::RlModel::setRotationAxis	(	const float &	x,
		const float &	y,
		const float &	z
	)

Set the model rotation axis.

Parameters

x	the x rotation axis
y	the y rotation axis
z	the z rotation axis

◆ setRotationAxis() [2/2]

void raylib::model::RlModel::setRotationAxis ( const Vector3f & rotationAxis )

Set the model rotation axis.

Parameters

rotationAxis the rotation axis

◆ setScale() [1/2]

void raylib::model::RlModel::setScale	(	const float &	x,
		const float &	y,
		const float &	z
	)

Set the model scale.

Parameters

x	the x scale
y	the y scale
z	the z scale

◆ setScale() [2/2]

void raylib::model::RlModel::setScale ( const Vector3f & scale )

Set the model scale.

Parameters

scale the scale

The documentation for this class was generated from the following files:

raylib-cpp/include/raylib/3DObject/RlModel.hpp
raylib-cpp/src/raylib/3DObject/RlModel.cpp
