raylib::RlCamera Class Reference

Encapsulation of the raylib Camera3D. More...

#include <RlCamera.hpp>

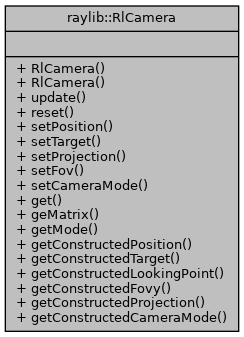

Collaboration diagram for raylib::RlCamera:

Public Member Functions
	RlCamera ()
	Empty constructor who doesn't initialize the camera. More...
	RlCamera (const Vector3f &position, const Vector3f &target, const Vector3f &lookingPoint, const float &fovy=45, const CameraProjection &projection=CAMERA_PERSPECTIVE, const CameraMode &cameraMode=CAMERA_FREE)
	Construct a new RlCamera object. More...
void	update ()
	Update the camera, needed to move the camera. More...
void	reset ()
	Reset the camera to the initial state of the constructor. More...
void	setPosition (const Vector3f &position)
	Set the position of the camera. More...
void	setTarget (const Vector3f &target)
	Set the target of the camera (Camera looking at point) More...
void	setProjection (const CameraProjection &projection)
	Set the camera projection type. More...
void	setFov (const float &fovy)
	Set the fovy of the camera (Camera field-of-view Y) More...
void	setCameraMode (const CameraMode &mode)
	Set the camera mode. More...
const Camera3D &	get () const
	Get the 3d camera. More...
Matrix	geMatrix ()
	Get the matrix of the camera. More...
const CameraMode &	getMode () const
	Get the camera mode. More...
const Vector3f &	getConstructedPosition () const
	Get the position of the camera when construct. More...
const Vector3f &	getConstructedTarget () const
	Get the target of the camera when construct. More...
const Vector3f &	getConstructedLookingPoint () const
	Get the looking point of the camera when construct. More...
const float &	getConstructedFovy () const
	Get the fovy of the camera when construct. More...
const CameraProjection &	getConstructedProjection () const
	Get the projection of the camera when construct. More...
const CameraMode &	getConstructedCameraMode () const
	Get the camera mode when construct. More...

Detailed Description

Encapsulation of the raylib Camera3D.

Constructor & Destructor Documentation

RlCamera() [1/2]

raylib::RlCamera::RlCamera ( )

inline

Empty constructor who doesn't initialize the camera.

RlCamera() [2/2]

raylib::RlCamera::RlCamera ( const Vector3f &  position, const Vector3f &  target, const Vector3f &  lookingPoint, const float &  fovy = 45, const CameraProjection &  projection = CAMERA_PERSPECTIVE, const CameraMode &  cameraMode = CAMERA_FREE  )

explicit

Construct a new RlCamera object.

Parameters

position	the position of the camera
target	the target of the camera (Camera looking at point)
lookingPoint	the lookingPoint of the camera (rotation towards target)
fovy	the fovy of the camera (Camera field-of-view Y)
projection	the projection of the camera

See also

CameraProjection

Parameters

cameraMode

the mode of the camera

See also

CameraMode

Attention

Don't use this use the RlCameraBuilder instead (please)

See also

RlCameraBuilder

Exceptions

CameraException

Here is the call graph for this function:

Member Function Documentation

geMatrix()

Matrix raylib::RlCamera::geMatrix

(

)

Get the matrix of the camera.

Returns

the matrix of the camera

get()

const Camera3D & raylib::RlCamera::get

(

)

const

Get the 3d camera.

Returns

the 3d camera

Here is the caller graph for this function:

getConstructedCameraMode()

const CameraMode & raylib::RlCamera::getConstructedCameraMode

(

)

const

Get the camera mode when construct.

Returns

the camera mode

getConstructedFovy()

const float & raylib::RlCamera::getConstructedFovy

(

)

const

Get the fovy of the camera when construct.

Returns

the fovy of the camera

getConstructedLookingPoint()

const Vector3f & raylib::RlCamera::getConstructedLookingPoint

(

)

const

Get the looking point of the camera when construct.

Returns

the looking point vector of the camera

getConstructedPosition()

const Vector3f & raylib::RlCamera::getConstructedPosition

(

)

const

Get the position of the camera when construct.

Returns

the position of the camera

getConstructedProjection()

const CameraProjection & raylib::RlCamera::getConstructedProjection

(

)

const

Get the projection of the camera when construct.

Returns

the projection of the camera

getConstructedTarget()

const Vector3f & raylib::RlCamera::getConstructedTarget

(

)

const

Get the target of the camera when construct.

Returns

the target of the camera

getMode()

const CameraMode & raylib::RlCamera::getMode

(

)

const

Get the camera mode.

Returns

the camera mode

Here is the caller graph for this function:

reset()

void raylib::RlCamera::reset

(

)

Reset the camera to the initial state of the constructor.

Here is the call graph for this function:

Here is the caller graph for this function:

setCameraMode()

void raylib::RlCamera::setCameraMode

(

const CameraMode &

mode

)

Set the camera mode.

Parameters

mode	the mode of the camera

See also

CameraMode

Here is the call graph for this function:

setFov()

void raylib::RlCamera::setFov

(

const float &

fovy

)

Set the fovy of the camera (Camera field-of-view Y)

Parameters

fovy	the fovy of the camera

setPosition()

void raylib::RlCamera::setPosition

(

const Vector3f &

position

)

Set the position of the camera.

Parameters

position

the position of the camera

setProjection()

void raylib::RlCamera::setProjection

(

const CameraProjection &

projection

)

Set the camera projection type.

Parameters

projection

the projection of the camera

See also

CameraProjection

setTarget()

void raylib::RlCamera::setTarget

(

const Vector3f &

target

)

Set the target of the camera (Camera looking at point)

Parameters

target

the target of the camera

update()

void raylib::RlCamera::update

(

)

Update the camera, needed to move the camera.

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• raylib-cpp/include/raylib/Camera/RlCamera.hpp
• raylib-cpp/src/raylib/Camera/RlCamera.cpp
